Cadillac Escalade ESV Power Steering Repair in Kirkland, WA: Leaking Hydroboost and a Steering Gear That Failed to the Left

A 2004 Cadillac Escalade ESV came into our Kirkland shop at 224,397 miles with one complaint: it was hard to steer. It turned out to have two separate faults, and the second one only showed itself after the first was fixed. The truck left on September 28 steering normally in both directions.

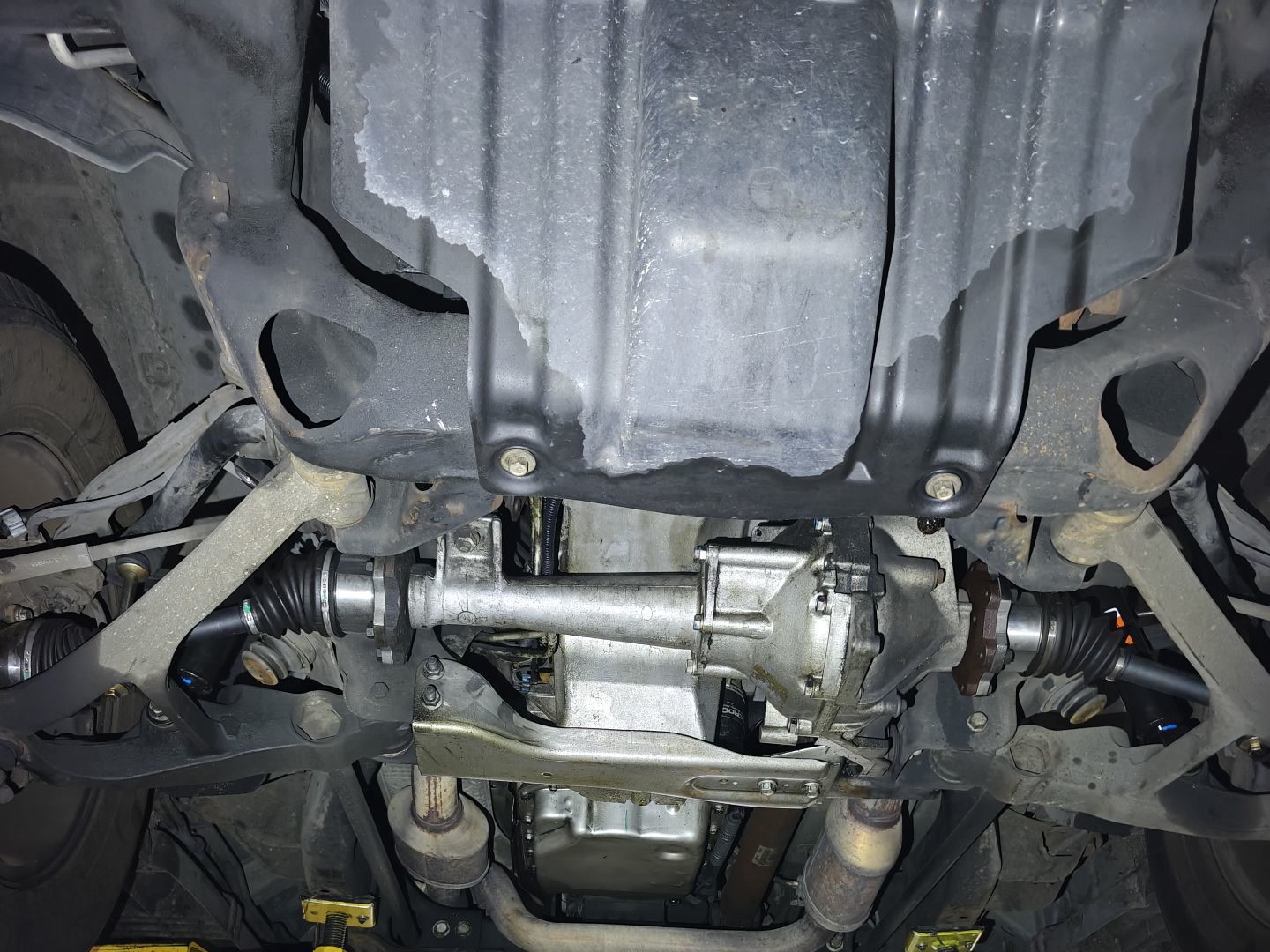

The Escalade’s front end on the lift during its inspection. The steering repairs themselves were not photographed.

First finding: a leaking Hydroboost and a leaking hose

On this generation of GM truck, the brakes don’t use a vacuum booster. They use a Hydroboost, a hydraulic brake booster powered by the same pump as the power steering. The steering and the brake assist share one hydraulic system, so a leak in one can starve the other.

Our technician found three leaks in that system:

• The Hydroboost unit was leaking internally, past its piston rod

• The Hydroboost was also leaking from its housing

• The high-pressure power steering hose between the pump and the Hydroboost was leaking at its fitting

We replaced the Hydroboost with a genuine GM unit and a new gasket, replaced the high-pressure hose, and installed a new brake light switch. Then the power steering system was flushed and bled using GM’s specified procedure to get the air out.

The result, from the technician’s notes:

After repairs, steering assist to the right is normal. Steering remains hard/binds when turning left, especially while vehicle is stationary.

Half the problem was gone. The other half pointed somewhere else.

Second finding: the steering gear was bypassing pressure turning left

Steering that’s normal one way and heavy the other is a specific symptom. With the leaks fixed and the system bled, our technician traced it to the steering gear itself. Its internal spool, the control valve that directs fluid pressure to one side or the other, was bypassing pressure when turning left. That’s why assist to the right was normal and assist to the left wasn’t.

While the steering was being inspected, the technician also found excessive play in the pitman arm and idler arm ball joints, the two pivots that connect the steering gear to the linkage that turns the front wheels. We recommended replacing them along with the gear.

The work performed

Hydroboost, hose and flush: $1,450–$2,000. Genuine GM Hydroboost brake booster with a genuine GM gasket, a new high-pressure power steering hose, a new brake light switch, a full power steering flush, and GM’s bleeding procedure. Power steering and suspension repair.

Steering gear, pitman arm and idler arm: $1,000–$1,450. A remanufactured power steering gear, a genuine GM pitman arm and a genuine GM idler arm, refilled with genuine GM power steering fluid and bled again. Because steering parts change the front-end geometry, the truck then went to a partner shop for a wheel alignment.

Final road test from the record: the power steering system “now operates normally with normal assist in both directions.”

Recorded labor across the job: 5.55 hours.

What the inspection flagged, but we didn’t fix

The multi-point inspection that comes with the visit found the brakes and tires in good shape (8 mm front pads, 7 mm rears, tires at 9/32 and 8/32 inch) and the battery testing good. It also noted three leaks for the owner’s list:

• The oil pressure sensor and the engine oil cooler lines were leaking

• The radiator was leaking

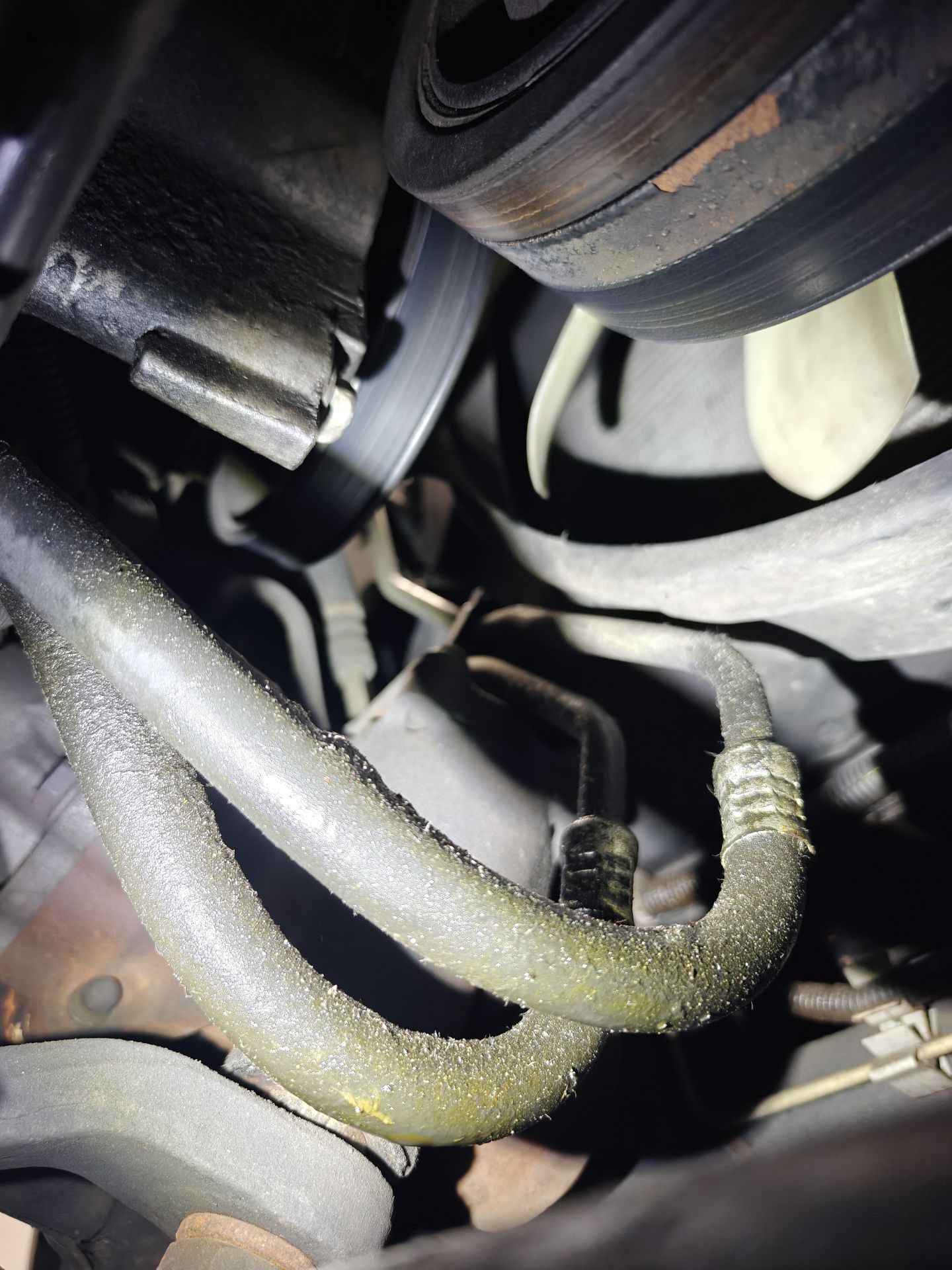

The oil cooler lines at the front of the engine, coated in residue. Noted on the inspection; not part of this repair.

None of those were part of the steering job. They’re on the record so the owner can plan for them.

What it cost

The job landed in the $2,600–$3,400 range, completed September 2026. The Hydroboost repair was the larger of the two lines, driven by the genuine GM booster itself. The steering gear line was mostly the remanufactured gear, with the pitman and idler arms making up most of the rest.

That range reflects a completed historical project, not a current quote. Another truck with the same complaint could need one of these repairs, both, or neither.

Questions about this job

Why does a brake booster affect steering on an Escalade?

On this truck the Hydroboost brake booster and the power steering run off the same pump and fluid. A leak in the booster or its high-pressure hose affects the whole system.

Why not replace the steering gear first?

Because the leaks were real and had to be fixed either way, and fixing them changed the symptom. Before, steering was hard. After, only left turns were hard. That one-sided symptom is what pointed to the steering gear. Replacing the gear first would have left three leaks in place.

What does it mean if my steering is heavy in only one direction?

It’s a different problem from steering that’s heavy both ways. On this Escalade it was the steering gear’s internal control valve bypassing pressure on one side. If yours does this, have the steering inspected before assuming it’s just low fluid.

Do you work on older Cadillacs?

Yes. More on our Cadillac repair in Kirkland.

Another job where fixing the first fault revealed the second: the Honda CR-V whose clutch still wouldn’t release after new hydraulics.

Prepared from our job records for this vehicle: the repair order and technician notes, the multi-point inspection with photos, the parts list and the final invoice. The steering components were not photographed.
