Honda CR-V Clutch Replacement in Kirkland, WA: Broken Clutch Disc Springs at 165,283 Miles

This 2005 Honda CR-V EX is one of the less common ones: a manual transmission with four-wheel drive. It came into our Kirkland shop at 165,283 miles with one line on the repair order: “Clutch is inoperative. Check and advise.” It turned out to have two separate problems, and the second one only showed up after the first one was fixed.

First finding: the clutch hydraulics were leaking

On a hydraulic clutch, the pedal pushes fluid from a master cylinder, through a hose, to a slave cylinder that releases the clutch. Our technician confirmed the pedal wasn’t disengaging the clutch, inspected the system, and found fluid leaking from the master cylinder and the hydraulic hose.

A leak like that is a real reason for a clutch pedal to stop working, and it’s the least invasive thing to fix. We replaced the clutch master cylinder, the slave cylinder and the hydraulic line, then bled all the air out of the system.

The result, straight from the technician’s notes:

Bled all air from hydraulic system and found no change in clutch disengagement but no further leaks in hydraulic system.

The leak was fixed. The clutch still wouldn’t release. That meant the problem was inside the bell housing, and the only way to see it was to take the transmission out.

Second finding: broken springs inside the clutch disc

To get the transmission out of this CR-V, the technician disconnected and removed the driveshaft and both front CV axles, then unbolted the brackets and hardware and lowered the transmission out. Behind it was the answer.

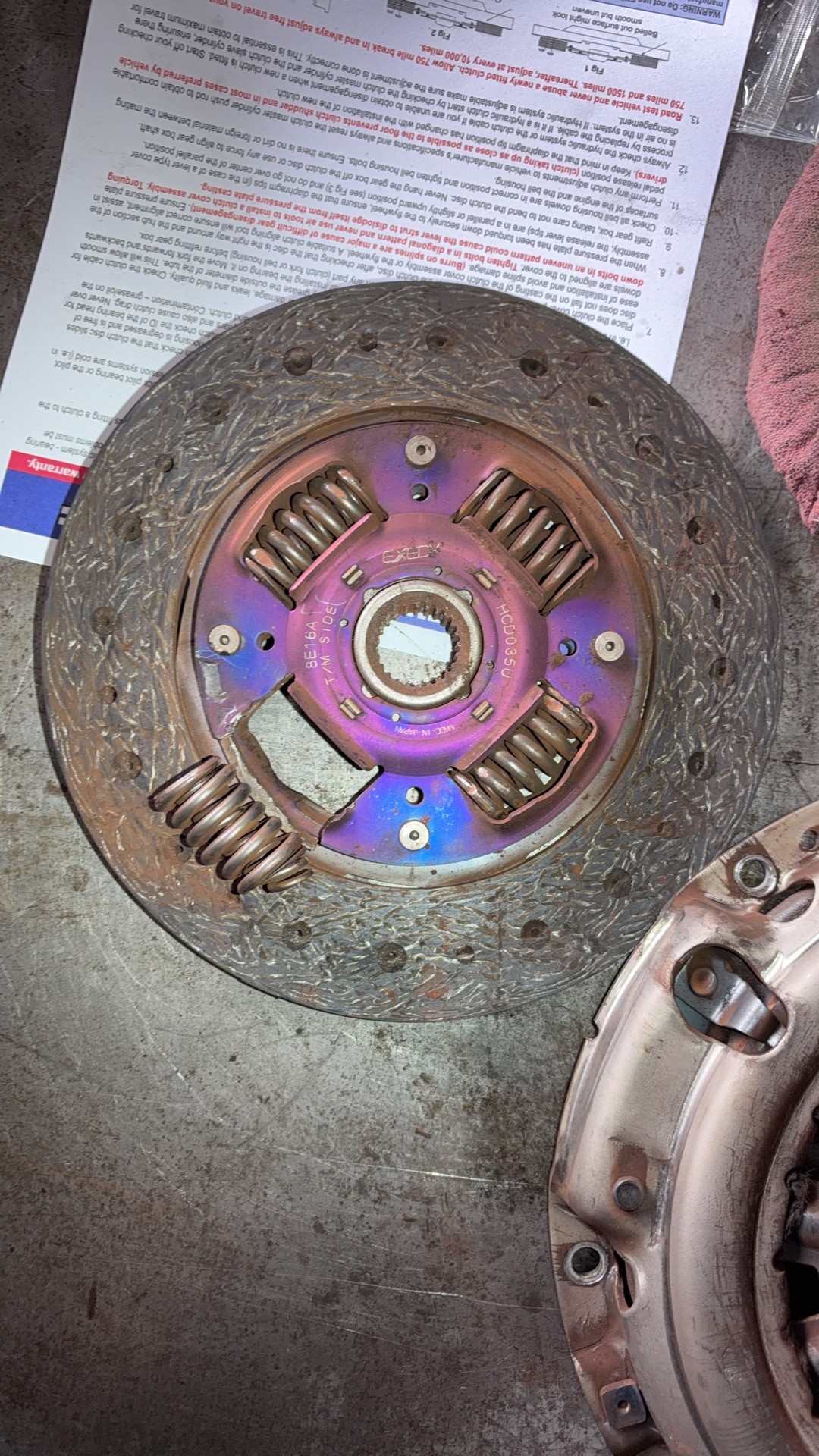

The old clutch disc. One of the damper springs has come out of its window, and the plate around it is torn open. The pressure plate is at the bottom right.

The springs at the center of the clutch disc had broken and lodged between the pressure plate and the disc, damaging both. With debris jammed between the parts that are supposed to separate when you press the pedal, the clutch couldn’t release no matter what the hydraulics did.

The work performed

With the transmission out:

• Removed all the old clutch parts

• Cleaned the old clutch material out of the bell housing and off the back of the engine

• Installed a new flywheel, pilot bearing, clutch disc and pressure plate

• Installed a new release bearing

• Reassembled everything that came off, including the transmission, driveshaft and both CV axles

Then we verified the clutch was operating properly, road tested it, and changed the manual transmission fluid with genuine Honda MTF. The odometer read 165,293 when it left, 10 miles more than when it arrived.

Labor on the clutch job came to 11 hours, which is what it takes to get a transmission out of an all-wheel-drive CR-V and back in. The car also got its oil service during the visit at no charge. More on clutch repair at our Kirkland shop.

Something we flagged, but didn’t fix

The multi-point inspection marked the front lower control arm bushings red: worn out, and due for replacement.

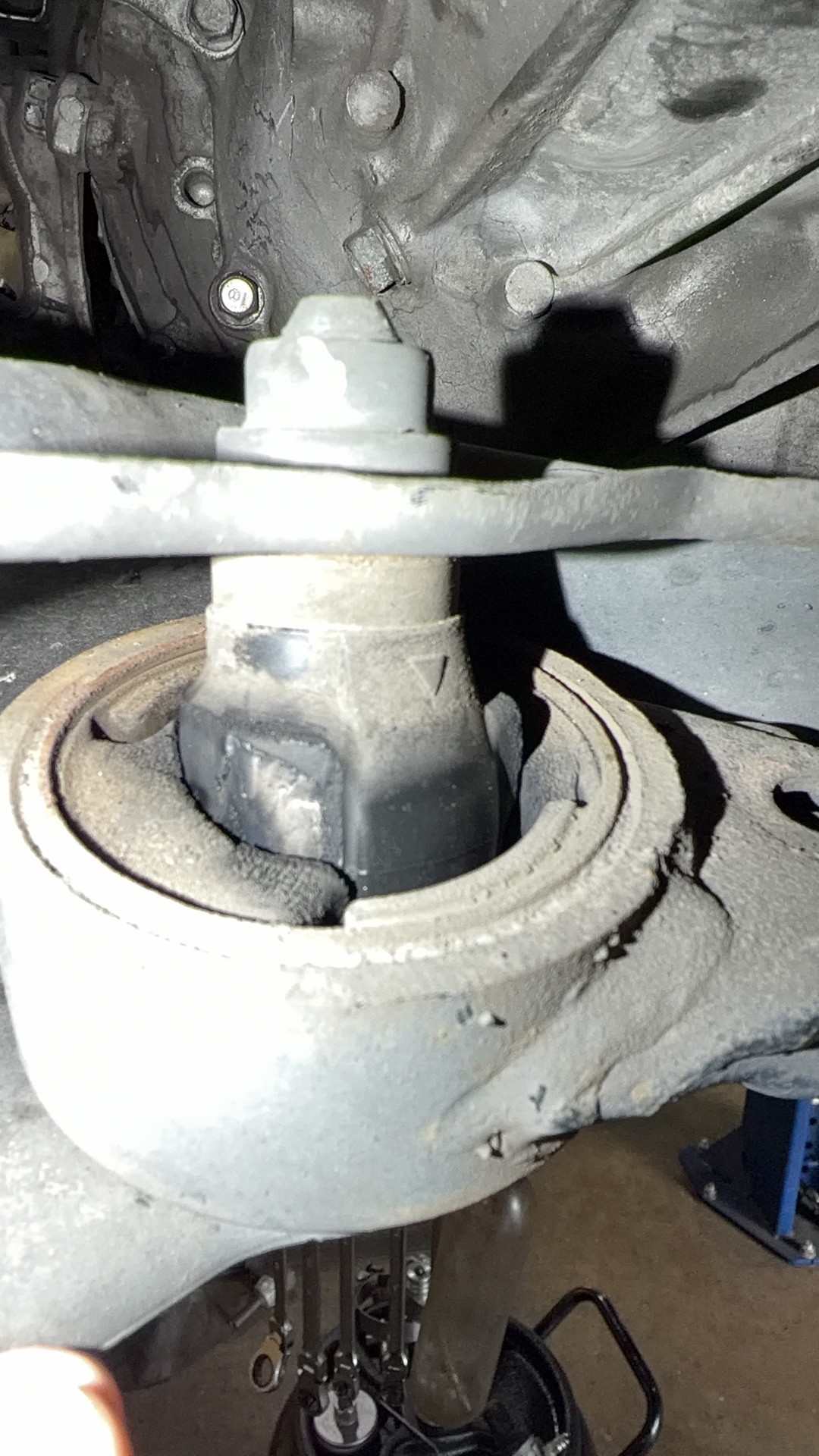

Front lower control arm bushing. The rubber has cracked and separated inside the housing.

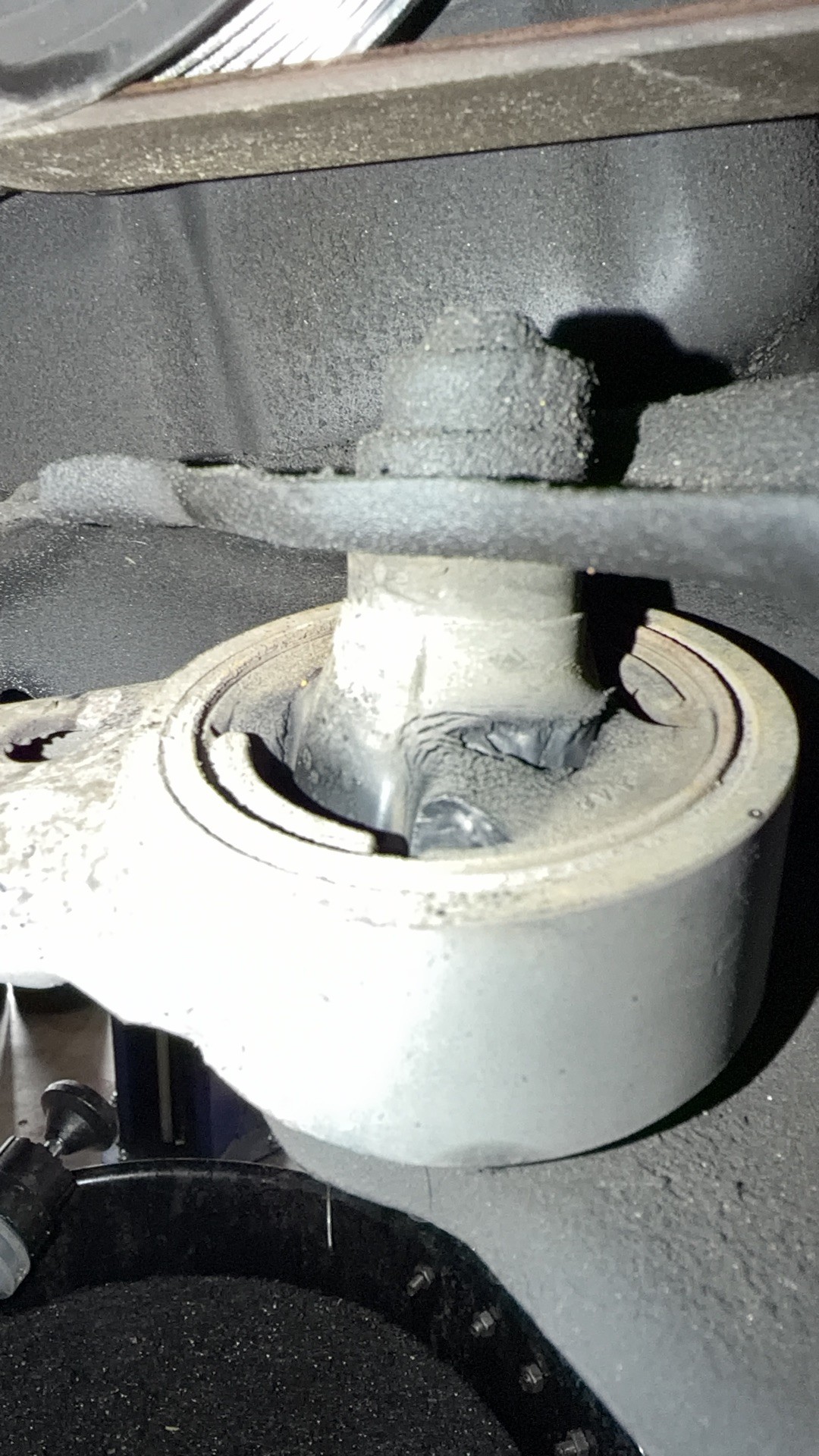

The other angle on the worn bushing, with the gap opened up in the rubber.

We first noted the suspension as a watch item in April 2026 at 153,284 miles. It isn’t part of this job, and it’s on the owner’s list to decide on. Steering and suspension repair.

The rest of the inspection was green: front pads at 4 mm, rears at 5 mm, and all four tires at 8/32 inch.

What it cost

The visit landed in the $3,000–$3,950 range, completed September 2026. More than half of that was labor, because the transmission had to come out. On the parts side, the clutch kit and the flywheel were the biggest items, followed by the master cylinder, slave cylinder and hydraulic hose.

That range reflects a completed historical project, not a current quote. Your car’s parts and labor will depend on what we find.

Questions about this job

Why replace the hydraulics if they weren’t the real problem?

They were a real problem. The master cylinder and hose were leaking, and a leaking clutch hydraulic system will eventually stop releasing the clutch on its own. Fixing the leak first was the least invasive step, and it ruled the hydraulics out. It just wasn’t the only fault.

What does it mean when a clutch pedal won’t disengage the clutch?

When you press the pedal, the clutch should release so you can shift. If it doesn’t, the cause can be in the hydraulics (fluid, master or slave cylinder, hose) or inside the clutch itself. On this CR-V, it was both.

Did the flywheel have to be replaced?

The broken springs damaged the disc and the pressure plate, and the job was done with a new flywheel installed. With the transmission already out, the flywheel, pilot bearing and release bearing are all right there.

Do you work on older Hondas?

All the time. More on our Honda repair in Kirkland.

Another drivetrain job where the answer was inside the parts: the 192,000-mile Toyota Tacoma with failed U-joints.

Prepared from our job records for this vehicle: the repair order and technician notes, the multi-point inspection with photos, the parts list, the final invoice, and the car’s earlier service history with us.
